2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature

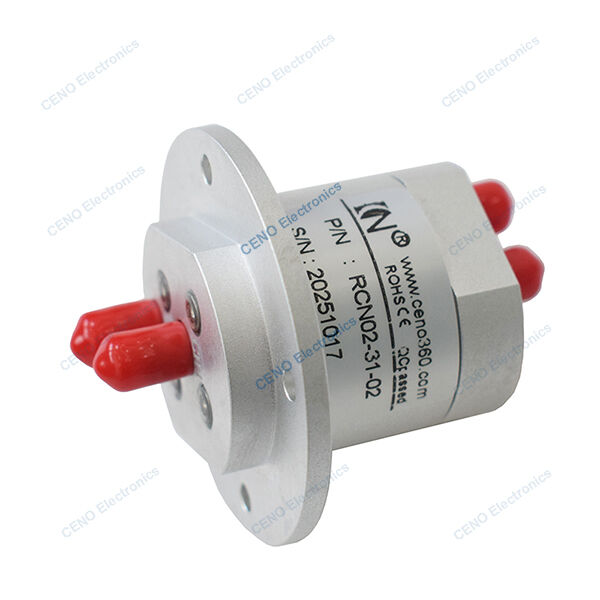

RCN02-31-02 is CENO 2 channels coaxial Radio Frequency Rotary Joint with frequency range DC-2GHz and 29-31GHz. RF rotary joints are used in continuous rotation applications to transmit high-frequency and high-speed signals between stationary and rotating components. RF rotary joints feature a compact structure, stable performance, excellent shielding, strong anti-interference capabilities, and ease of integration for different application. For more information please contact us.
Specification
| RCN02-31-02 Specification |
| Channels |
CH1 (TX) |
CH2 (TX) |
| Interface type |
SMA 2.92-K(50Ω) |
SMA (50Ω) |
| Frequency range |
29-31GHz |
DC-2GHz |
| Peak Power,max |
50W |
30W |
| Average Power,max |
25W |
10W |
| VSWR,max |
1.6 |
1.5 |
| VSWR-wow,max |
0.15 |
0.2 |
| Insertion Loss,max |
0.8dB |
0.6dB |
| Insertion Loss- wow,max |
0.1dB |
0.1dB |
| DC Load Capacity |
50V@1A |
| Insolation,min |
50dB |
| Rotating Speed,max |
60rpm |
| Life Time,min |
5 million |
| Starting Torque |
≤0.3Nm |
| Temperature |
-40℃ ~ + 70℃(W); -55℃ ~ + 85℃(S) |
| Humidity |
95% |
| IP Protection grade |
IP41 |
| Surface treatment |
Conductive oxidation |
| Body Material |
Aluminium alloy |
| Altitude |
Up to 3Km |
| Shock / Vibration |
Per RTCA DO-160G (TBD), standard for airborne systems |
Features
- Integrate design combine power signal and 4 channels RF joint
- Simply system structure & optimize wire & suit low temperature
- Install easy & Free maintenance
Applications
- Defense & aerospace
- High-end industry automation
- Industrial robot
- Satellite communication table
- Medical equipment
Optional
- Circuit, Voltage, Current
- Channels & Frequency range
- Contact / Housing Materials
- Connector type & IP Grade
- Working speed & temperature
Outline drawing
