Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
  • Hollow-shaft Slip Ring with 3×25A power circuits
Hollow-shaft Slip Ring with 3×25A power circuits

Hollow-shaft Slip Ring with 3×25A power circuits

Herkunftsort China
Markenname CENO
Zertifizierung CE,RoHS,UL,ISO9001
Modellnummer ECN000-10P-04S-01EM-02R
Einzelheiten zum Produkt
Schutzklasse:
IP51
Betriebsfeuchtigkeit:
Über 90 % relative Luftfeuchtigkeit
Betriebstemperatur:
-40°C ~ +70°C
Kabelspezifikationen:
AWG12#/AWG22# verzinnter Teflondraht; Vieradriges, verdrilltes, abgeschirmtes Kabel (0,14 mm²); CAT6
Betriebsspannung:
240 VAC/VDC
Stromkreise u. Strom:
3 Stromkreise × 25A (240VAC); 7 Schaltkreise × 5A (24 VDC) 1 Satz × RS422-Signal; 1 Satz × 100 Mbit/
Spannungsfestigkeit:
≥1000VAC@50Hz zwischen den Stromkreisen (Leistung) ≥200V@50Hz zwischen den Stromkreisen (Signal)
Isolationswiderstand:
1000 MΩ bei 500 VDC (Leistung); 200MΩ@200VDC (Signal)
Kontaktwiderstandsvariation:
≤10 mΩ (bei 50 U/min-Betrieb)
Betriebsgeschwindigkeit:
0 ~ 50 U / min
Bleidrahtlänge:
Rotor: 1000 mm; Stator: 2500 mm
Kontaktmaterial:
Edelmetall / Gold-auf-Gold
Gehäusematerial:
Aluminiumlegierung, sandgestrahlt und schwarz eloxiert
Zahlungs- und Versandbedingungen
Min Bestellmenge
1Stk
Preis
Verhandlungsfähig
Verpackung Informationen
Karton
Lieferzeit
Aus dem Regal
Zahlungsbedingungen
T/T, Paypal, Western Union, l/c
Versorgungsmaterial-Fähigkeit
10000pcs Monat
Beschreibung des Produkts

Hollow-shaft Slip Ring with 3×25A power circuits

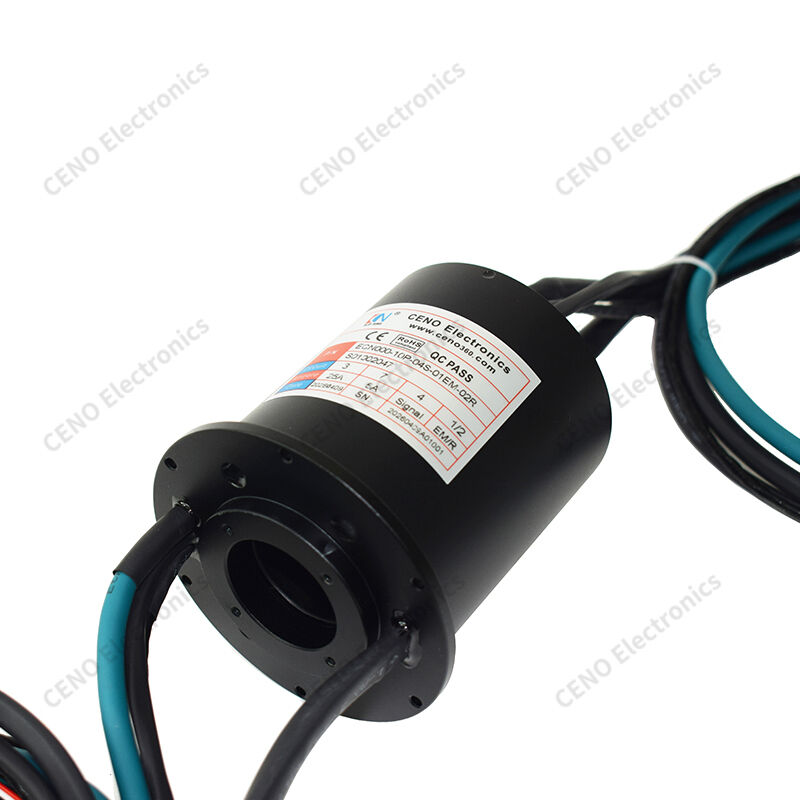

ECN000-10P-04S-01EM-02R  is CENO  Hollow-shaft Slip Ring integrates 3×25A power circuits, 7×5A signal channels and Gigabit Ethernet paths to deliver simultaneous power, control and high-speed data transfer during 360° endless rotation. Its central through bore allows shafts or pipelines to pass through, with separated power & signal cables to suppress interference. Made of anodized aluminum and precious metal contacts, it is CE & RoHS certified for stable long-term industrial rotary operation.


Features

  • Central through bore
  • Power-signal isolation
  • Gigabit Ethernet
  • Flange mount
  • Precious metal contact

Applications

  • Rotary automation table
  • Vision inspection pan-tilt
  • Robot rotary joint
  • Packaging rotary machine
  • Pipeline rotary unit

Optional

  • Custom bore size
  • Adjustable circuits
  • Custom wire length
  • Higher IP grade
  • Shielded wiring


Specification


ECN000-10P-04S-01EM-02R

Specification

Protection rating

IP51

Operating humidity

Above 90% RH

Operating temperature

-40°C ~ +70°C

Wire specifications

AWG12#/AWG22# tinned Teflon wire; Four-core twisted-pair shielded cable (0.14mm²); CAT6

Operating voltage

240VAC/VDC

Circuits & Current

3 circuits × 25A (240VAC); 7 circuits × 5A (24VDC)

1 set × RS422 signal; 1 set × 100 Mbps Ethernet

Dielectric strength

≥1000VAC@50Hz between circuits (power)

≥200V@50Hz between circuits (signal)

Insulation resistance

1000MΩ@500VDC (power); 200MΩ@200VDC (signal)

Contact resistance variation

≤10mΩ (at 50rpm operation)

Operating speed

0~50rpm

Lead wire length

Rotor: 1000mm; Stator: 2500mm

Contact material

Precious metal / gold-on-gold

Housing material

Aluminum alloy, sandblasted and black anodized



Outline drawing
Hollow-shaft Slip Ring with 3×25A power circuits 0
 Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
